Net fastening
Fasteners for anti-drone nets
Protective and anti-drone nets are fixed to posts and beams with hot-dip galvanized plate clamps: into timber with a wood screw, into steel with a self-drilling screw. ARNELL makes the clamps in-house and ships them ex stock Germany – as single parts or, on request, as a set with the matching screw.
Applications
Where nets have to hold
Fix nets over carriageways and access routes to timber or steel masts.
Fix net canopies over parking areas, depots and storage yards to their substructure.
Fix nets to façades, roofs and technical installations on timber or steel substructures.
Products
Upper parts and sets
Two plate clamps from our own production, both available in the shop. For projects we supply them as a set with the matching screw for timber or steel.

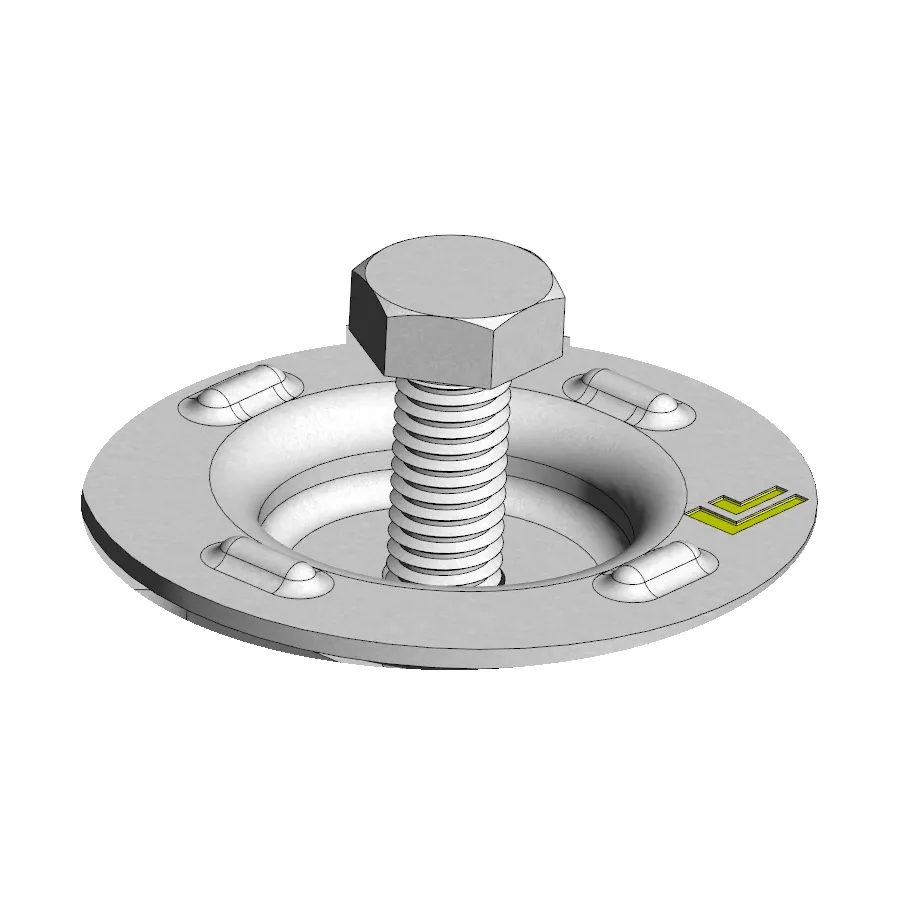

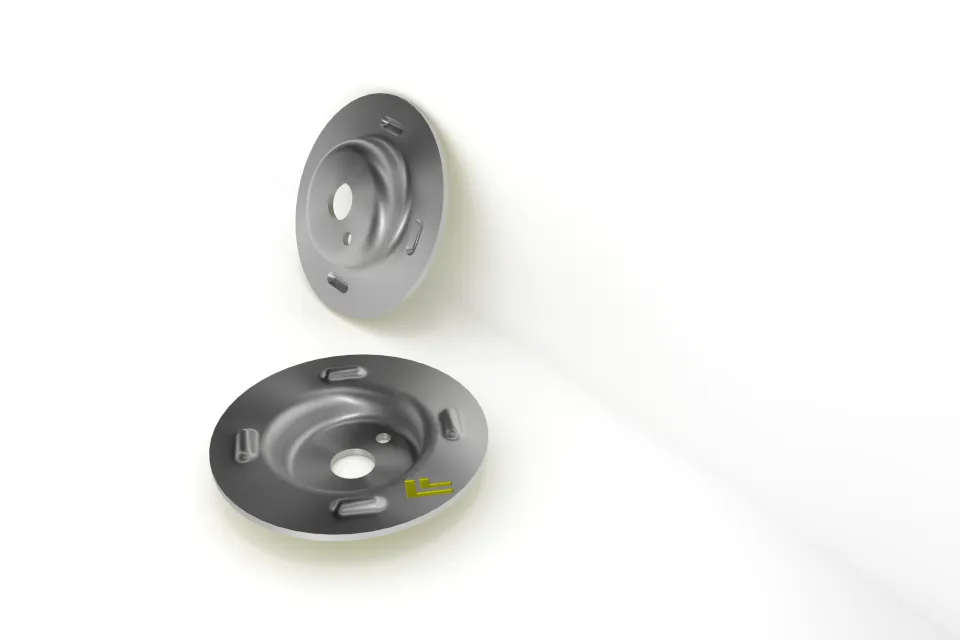

Plate clamp with drain hole and slip resistance, for M8 hexagon head screws. Hot-dip galvanized to EN ISO 1461, 0.027 kg.

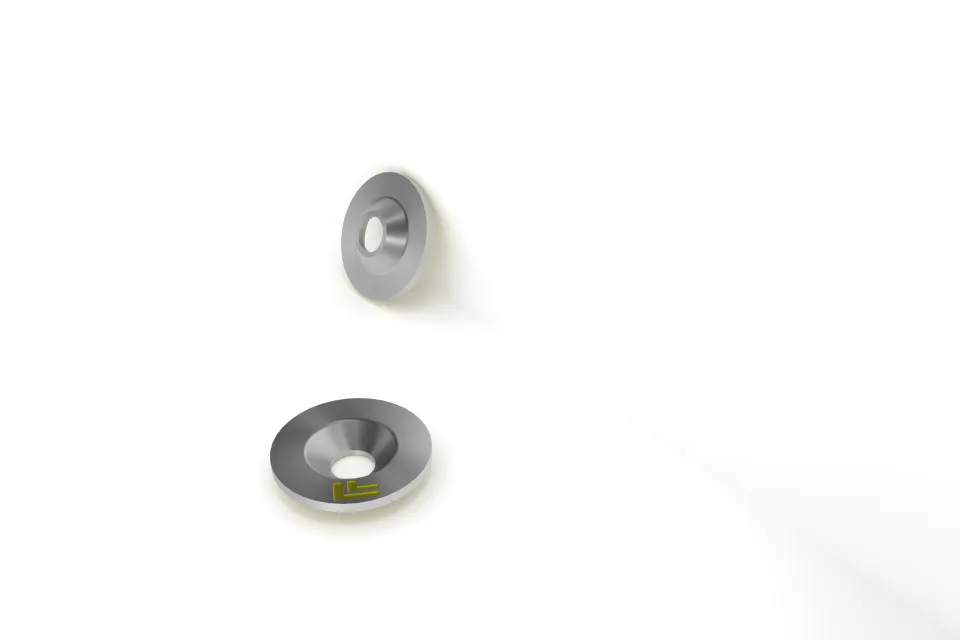

Compact plate clamp for fixing nets to posts and structures. Hot-dip galvanized to EN ISO 1461, 0.011 kg.
For timber posts and beams
- Item no.
- [to follow]
- Pack
- 100 / 1,000 pcs
For steel sections and tubular posts
- Item no.
- [to follow]
- Pack
- 100 / 1,000 pcs
For timber posts and beams
- Item no.
- [to follow]
- Pack
- 100 / 1,000 pcs
For steel sections and tubular posts
- Item no.
- [to follow]
- Pack
- 100 / 1,000 pcs
Installation
Installed in three steps
Align the net or its edge rope with the post or beam.
Lay the plate clamp over the mesh or rope.
Fix with a wood screw into timber or a self-drilling screw into steel.
The number and spacing of fixing points depend on the net, the span and the substructure. Give us these details in your enquiry and we will work out the project quantity.
Specifications
Technical data
| Upper part 4 | Upper part 78 | |
|---|---|---|
| Item no. | 100005 | 100046 |
| Material | Steel, hot-dip galvanized to EN ISO 1461 | |
| Weight | 0.027 kg | 0.011 kg |
| Screw | M8 hexagon head screw | on request |
| Packaging unit | 100 pieces | |
| Availability | ex stock Germany, delivery time 2–5 days | |
Made by ARNELL under ISO 9001:2015. The screws for the sets are DIN standard parts from inspected European sourcing.
Location & delivery
Short routes to Eastern Europe
Our plant is in Zittau, where Germany, Poland and the Czech Republic meet. The Ukrainian border is around 700 km away by road – along the A4 motorway through Poland to the Korczowa–Krakovets crossing. That makes fast delivery possible: upper parts from stock ship by freight forwarder by arrangement, and for project quantities we plan shipping and dates with you.
FAQ
Frequently asked questions
Which clips hold anti-drone mesh?
Plate clamps that press the mesh or its edge rope flat against the post. ARNELL upper parts 4 and 78 are hot-dip galvanized and screwed into timber or steel.
Which screw do I need?
A wood screw on timber posts and beams, a self-drilling screw on steel sections and tubular posts. As a set, we supply the upper part with the matching screw.
How are the parts protected against corrosion?
The upper parts are hot-dip galvanized to EN ISO 1461 and designed for outdoor use.
Can I get a sample?
Yes. Use the enquiry form and tell us which upper part and which substrate you are planning.
Does ARNELL ship abroad?
Yes, by arrangement. For project quantities we quote including shipping.
Get started
Start your project
Our engineering team will get back to you within 24 hours with a quotation for your project.
Mon–Fri, 9 am–4 pm CET/CEST · Technical advice
Request a free quotation
