Fence fastenings for double-wire mesh panels on square posts: fixing plates FC001, fastening clamps FC002, mesh connectors FC004 and FC005, edge fixings FC006 and FC007 and the FC013 wall connection bracket. Holders, connectors and edge fixings in stainless steel 1.4301, the wall bracket hot-dip galvanized. From stock in Germany.

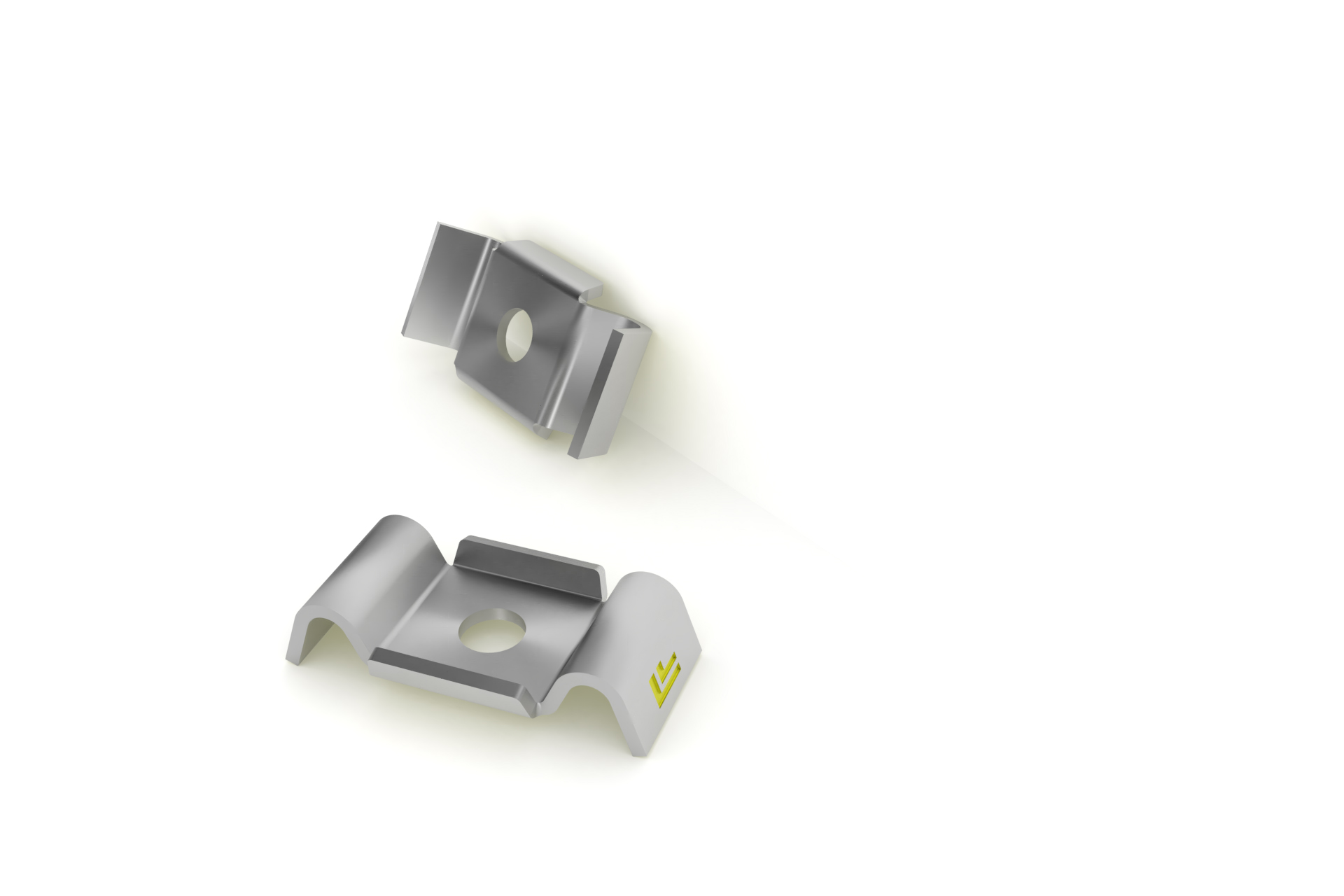

Clamp for direct mounting on posts or masonry For assembly with M4 screws Stainless steel 1.4301
Content: 1 piece (€646.567000 / 1000 piece)
Universal clamping plate for support brackets, stainless steel 1.4301 (A2) For assembly with hexagon socket head cap screws DIN 912 M8
Content: 1 piece (€1,303.775000 / 1000 piece)
Universal clamping plate FC001 for support brackets, stainless steel 1.4301 Dimensions 29x29 mm For assembly with hexagon socket head cap screws DIN 912 M8
Content: 1 piece (€714.357000 / 1000 piece)

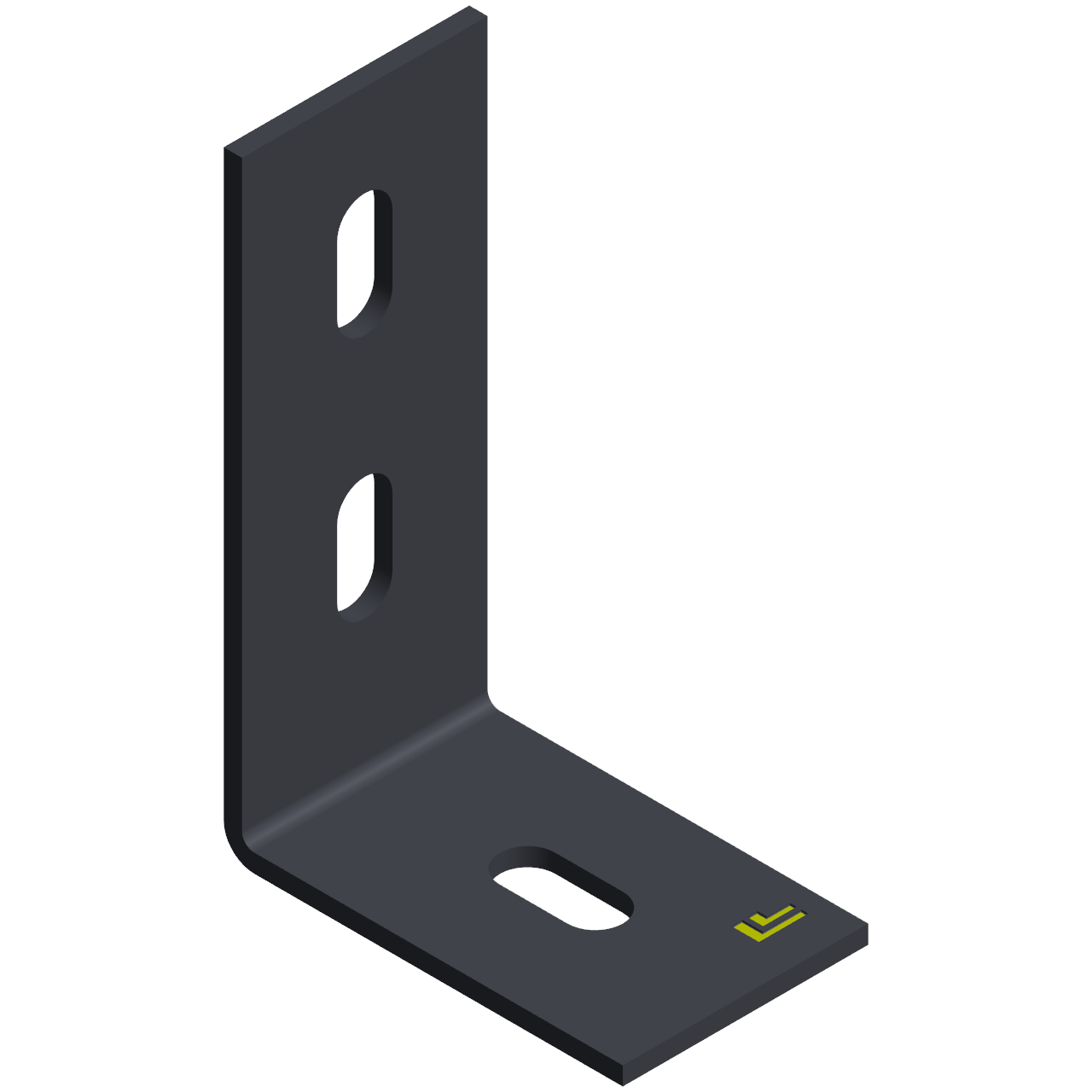

Angle bracket 100x65x40x3 mm Long leg: 100x40 mm with 2 slotted holes 20x9 mm Short leg 65x40 mm with 1 slotted hole 20x9 mmPowder-coated, anthracite RAL 7016
Content: 1 piece (€291.408600 / 100 piece)

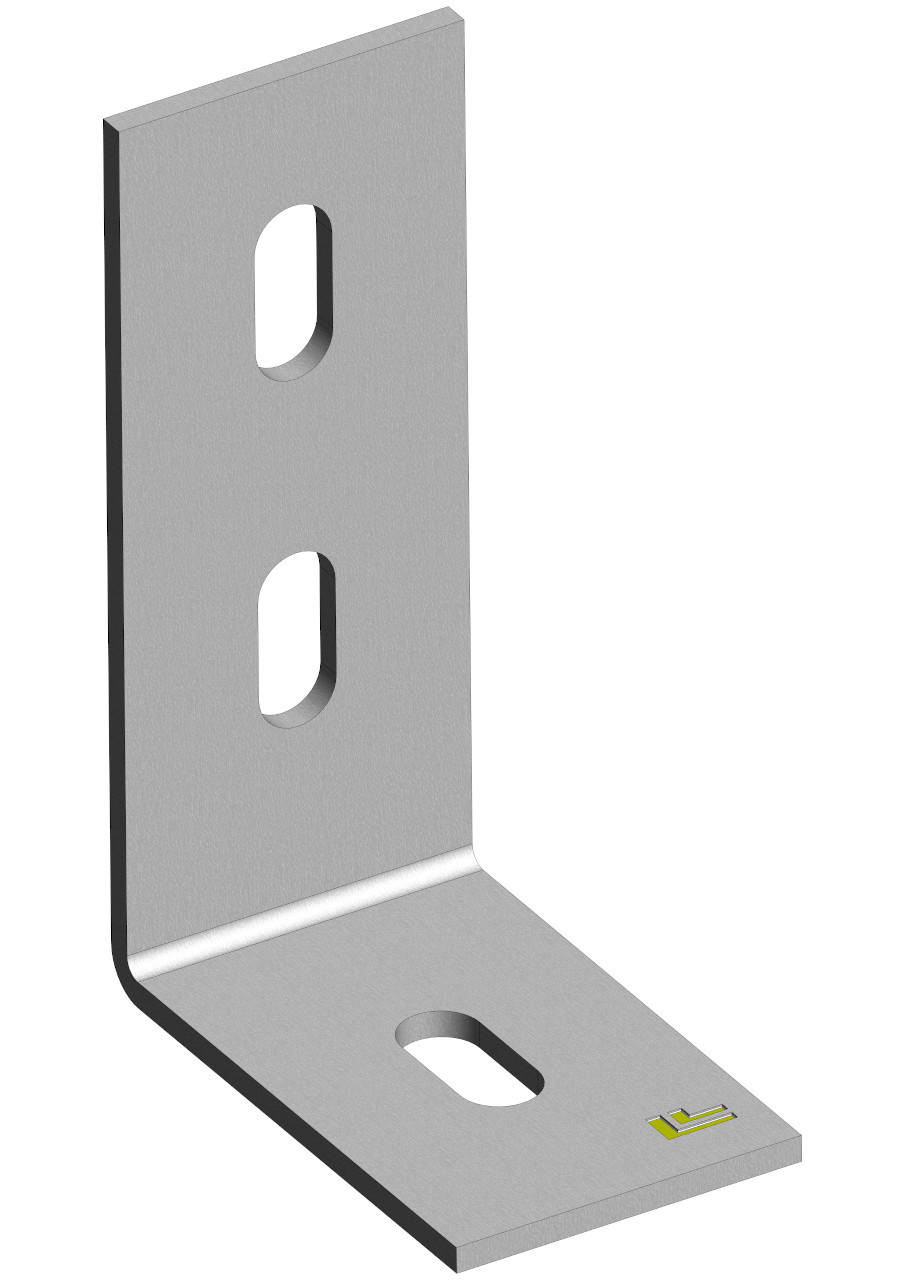

Angle bracket 100x65x40x3 mm Long leg: 100x40 mm with 2 slotted holes 20x9 mm Short leg 65x40 mm with 1 slotted hole 20x9 mmHot-dip galvanized
Content: 1 piece (€167.751000 / 100 piece)

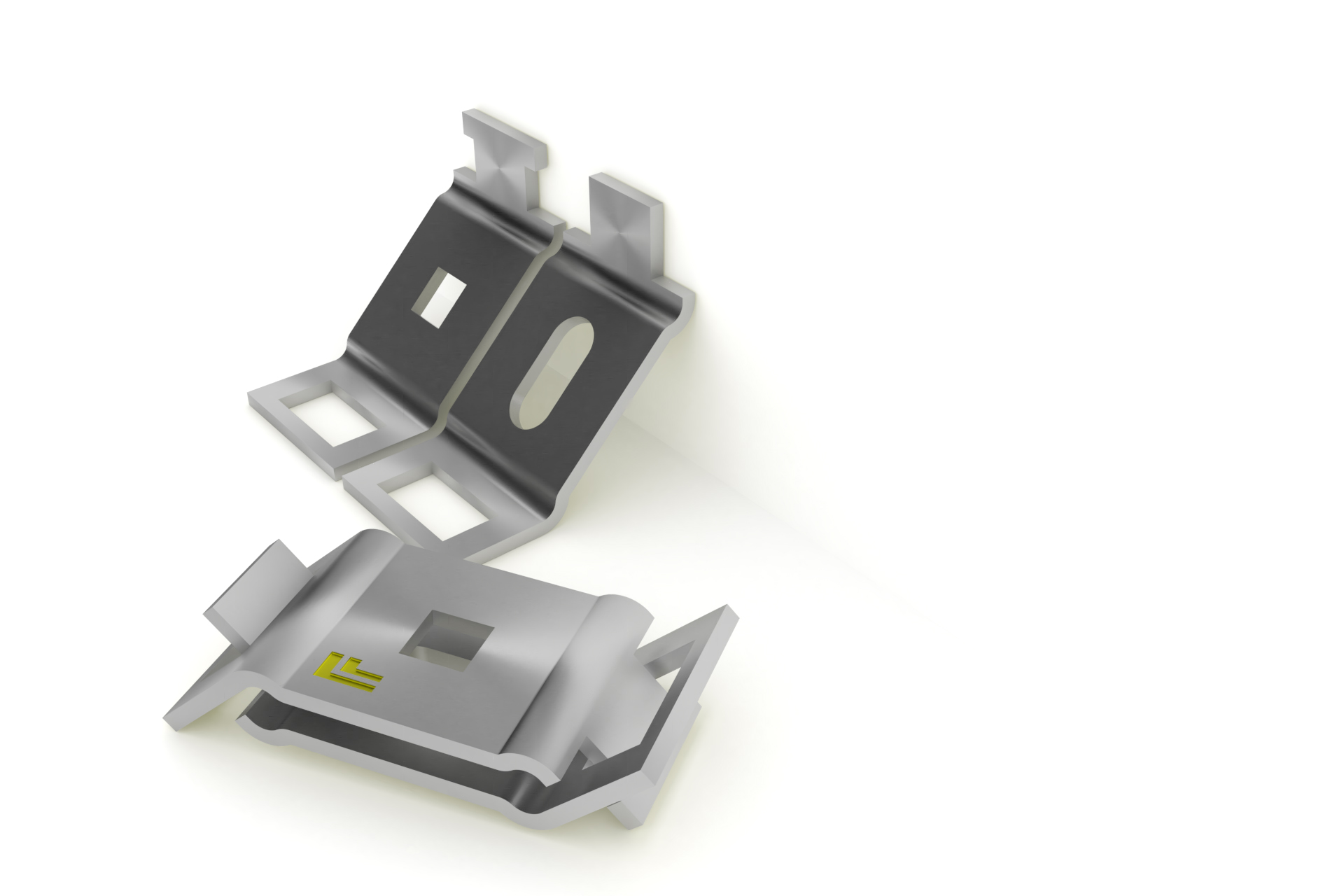

For connecting fence panels with mesh pitch 35 mm The square hole in the front plate prevents the carriage bolt from turning The slotted hole in the counter plate ensures easy positioning For assembly with square-neck carriage bolts DIN 603 M8 Stainless steel 1.4301
Content: 1 piece (€1,369.595000 / 1000 piece)
For connecting fence panels with mesh pitch 35 mm The square hole in the front plate prevents the carriage bolt from turning The slotted hole in the counter plate ensures easy positioning For assembly with square-neck carriage bolts DIN 603 M8 Stainless steel 1.4301
Content: 1 piece (€1,369.595000 / 1000 piece)

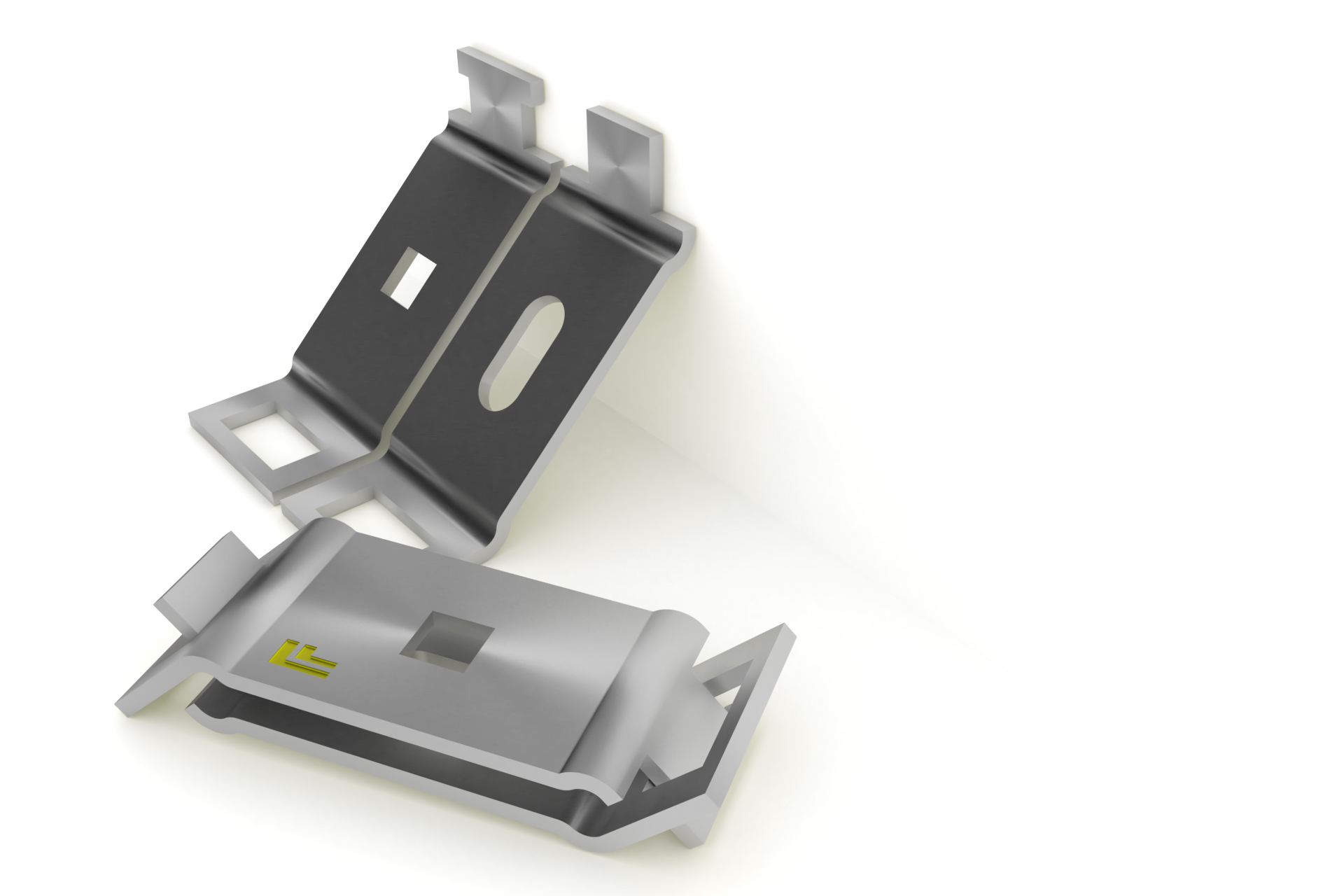

For connecting fence panels with mesh pitch 50 mm The square hole in the front plate prevents the carriage bolt from turning The slotted hole in the counter plate ensures easy positioning For assembly with square-neck carriage bolts DIN 603 M8 Stainless steel 1.4301
Content: 1 piece (€1,493.252000 / 1000 piece)
For connecting fence panels with mesh pitch 50 mm The square hole in the front plate prevents the carriage bolt from turning The slotted hole in the counter plate ensures easy positioning For assembly with square-neck carriage bolts DIN 603 M8 Stainless steel 1.4301
Content: 1 piece (€1,493.252000 / 1000 piece)
Clamp for direct mounting on masonry For assembly with countersunk screws Stainless steel 1.4301
Content: 1 piece (€647.848000 / 1000 piece)
Clamp for direct mounting on masonry For assembly with M8 screws Stainless steel 1.4301
Content: 1 piece (€657.061000 / 1000 piece)
Clamp for direct mounting on masonry For assembly with M4 screws Stainless steel 1.4301
Content: 1 piece (€665.781000 / 1000 piece)
Clamp for direct mounting on masonry For assembly with M8 screws Stainless steel 1.4301
Content: 1 piece (€679.034000 / 1000 piece)
One part per connection point
A mesh fence is joined at three places, and each has its own part: panel to post with a mat clamp, panel to panel with a mesh connector, and fence to wall with the FC013 bracket.
Planning a run of fence
The hole pattern follows the carriage bolt, not the panel, so it pays to settle the bolt first and choose plates and clamps to match. The full sequence is shown in the guide fixing welded wire mesh fence panels; post brackets and fittings are listed under fence post brackets.
Frequently asked questions
Which parts are needed to mount a double-wire mesh fence?

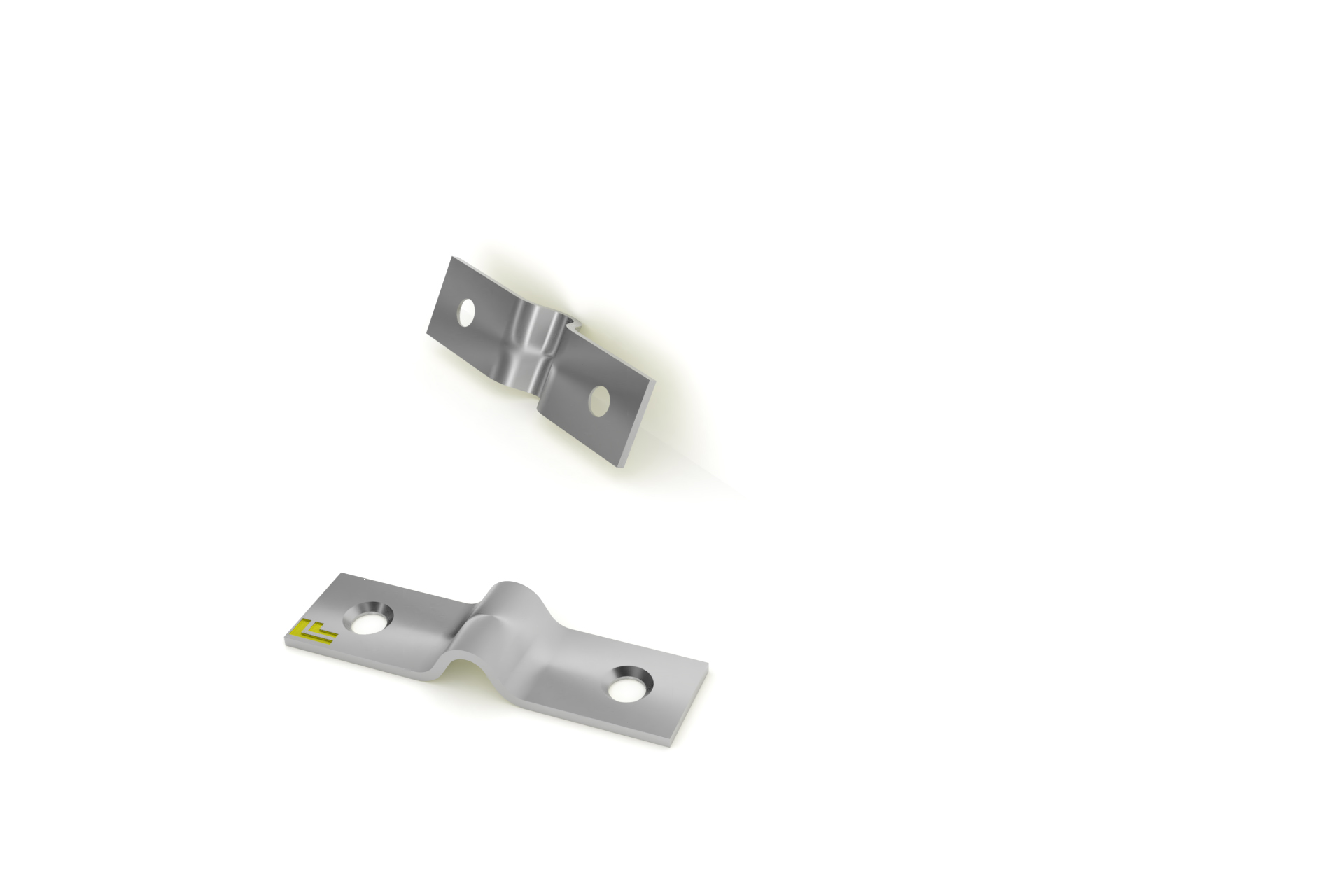

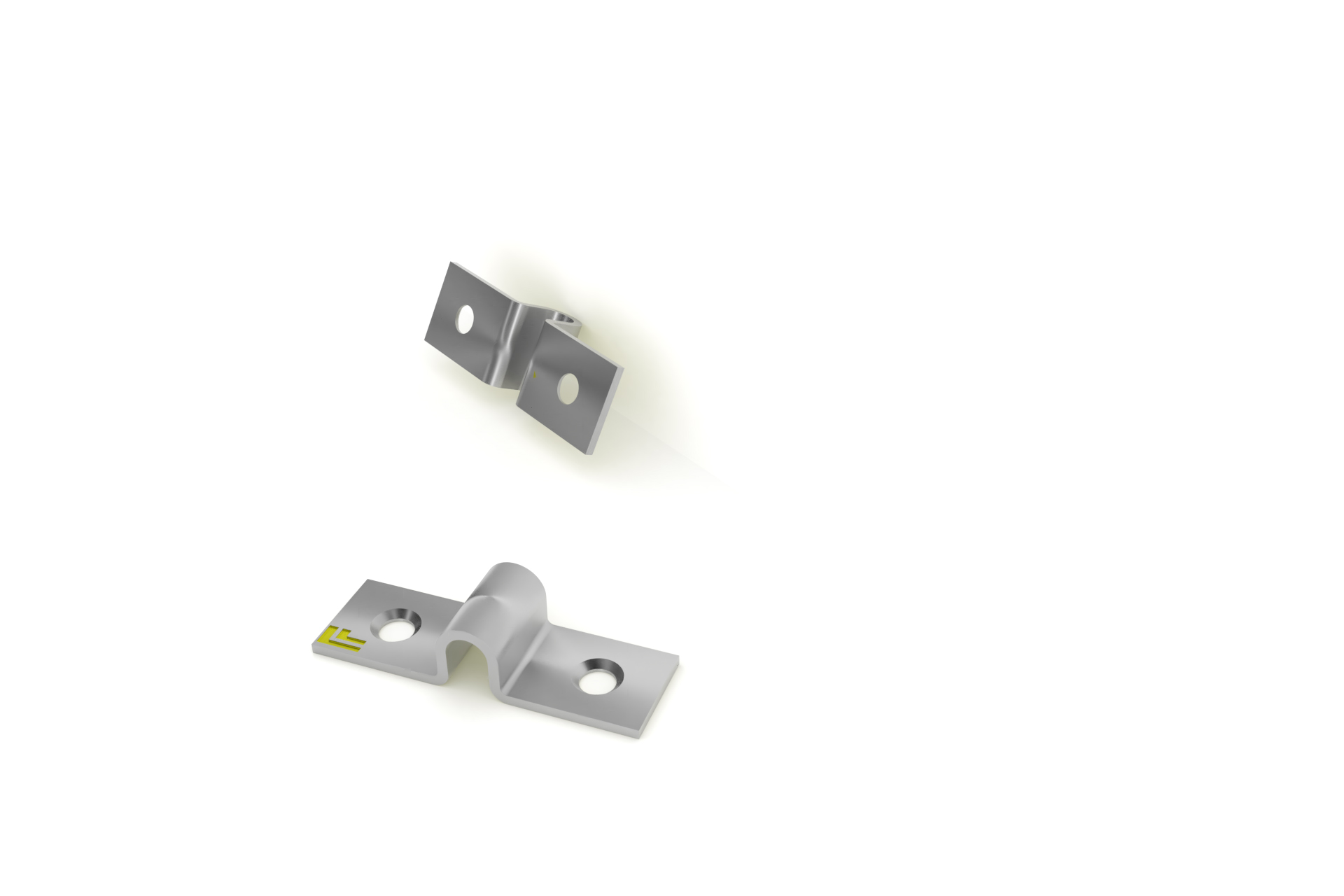

Three connection points each need their own part: mesh to post the fixing plate FC001 or the fastening clamp FC002, mesh to mesh the mesh connector, fence to wall the wall connection bracket FC013. Edge and intermediate positions use the edge fixings FC006 and FC007 and the mesh fixings FC008 and FC009.
Do ARNELL fence fastenings fit round posts?
No. All holders in the range are designed for square posts – the FC011 centre clamp, for example, for 60 × 60 mm. ARNELL does not supply a fastening for round posts; a square clamp will not fit there. In that case it is worth asking before ordering.
Which material are the fence fastenings made of?
The available holders, connectors and edge fixings are stainless steel 1.4301. The FC013 wall connection bracket is hot-dip galvanized. Coated versions in anthracite RAL 7016 and moss green RAL 6005 are available on request.
Which hole pattern is required?
The hole follows the carriage bolt being used, not the mesh. Available are 5, 7, 9 and 11 mm, plus a 9 × 11 mm slot for tolerance compensation and an 8.5 mm square hole that stops the carriage bolt from turning. A 5 mm countersunk hole is available where no head may protrude.
