Individual parts for grating fastenings: upper clamps in a wide range of shapes, C-clips for sheet-metal profile gratings, the M-clip MC004, and the matching lower clamps as separate items. Mostly hot-dip galvanized, single types in stainless steel 1.4571. For a standard installation the pre-assembled fastener sets are faster — order individual parts when a set has to be extended, repaired or adapted.
C-Clip for sheet-metal profile gratings, M8, electro-galvanized
Robust C-clip for fixing sheet-metal profile gratingsAre you looking for a reliable and stable solution for fixing your sheet-metal profile gratings to substructures? Our high-quality C-clip (C-shaped clip) is the ideal choice for secure and durable installation.Product features and benefitsSecure and firm connection: The C-clip encloses the support profile from below and is firmly connected to the grating and the profile from above by a separate screw. This guarantees high pull-out resistance and prevents the grating from slipping or lifting.Maximum flexibility: Designed for support structures with a maximum height of 18 mm, this clip fits common profile tubes, I-beams or other steel sections.Easy installation: Fixing is quick and straightforward. You only need a suitable screw (see accessories) and a tool to create a firm clamped connection. Welding is not necessary!Versatile use: Perfectly suited for use in industrial construction, on walkways, mezzanines, platforms and wherever sheet-metal profile gratings have to be fixed to steel structures.Durable material: The robust design ensures high load capacity and weather resistance (steel, electro-galvanized). Important noteThe screw required for fixing and, optionally, the matching nut are not included in the scope of delivery of the C-clip.💡 Tip: Order the matching screw sets (e.g. hexagon head screws with nuts in the required length) at the same time to ensure quick and complete installation!Secure your gratings now, quickly, cleanly and reliably! 🔩
C-Clip for sheet-metal profile gratings, M8, hot-dip galvanized
Robust C-clip for fixing sheet-metal profile gratingsAre you looking for a reliable and stable solution for fixing your sheet-metal profile gratings to substructures? Our high-quality C-clip (C-shaped clip) is the ideal choice for secure and durable installation.Product features and benefitsSecure and firm connection: The C-clip encloses the support profile from below and is firmly connected to the grating and the profile from above by a separate screw. This guarantees high pull-out resistance and prevents the grating from slipping or lifting.Maximum flexibility: Designed for support structures with a maximum height of 18 mm, this clip fits common profile tubes, I-beams or other steel sections.Easy installation: Fixing is quick and straightforward. You only need a suitable screw (see accessories) and a tool to create a firm clamped connection. Welding is not necessary!Versatile use: Perfectly suited for use in industrial construction, on walkways, mezzanines, platforms and wherever sheet-metal profile gratings have to be fixed to steel structures.Durable material: The robust design ensures high load capacity and weather resistance (steel, hot-dip galvanized). Important noteThe screw required for fixing and, optionally, the matching nut are not included in the scope of delivery of the C-clip.💡 Tip: Order the matching screw sets (e.g. hexagon head screws with nuts in the required length) at the same time to ensure quick and complete installation!Secure your gratings now, quickly, cleanly and reliably! 🔩
M-Clip MC004, hot-dip galvanized
Hot-dip galvanized to DIN EN ISO 1461 Grating fastenings are currently not subject to any CE standards, but must be used in accordance with the legal provisions applicable to the application.
Content: 1 piece (€654.598000 / 1000 piece)
Choosing by grating type
The upper clamp engages the mesh from above, so its shape has to match the mesh of the grating. For sheet-metal profile gratings, where a standard clamp finds no mesh to grip, the C-clip is the answer; it is listed hot-dip galvanized and electrogalvanized.
Ordering by type number

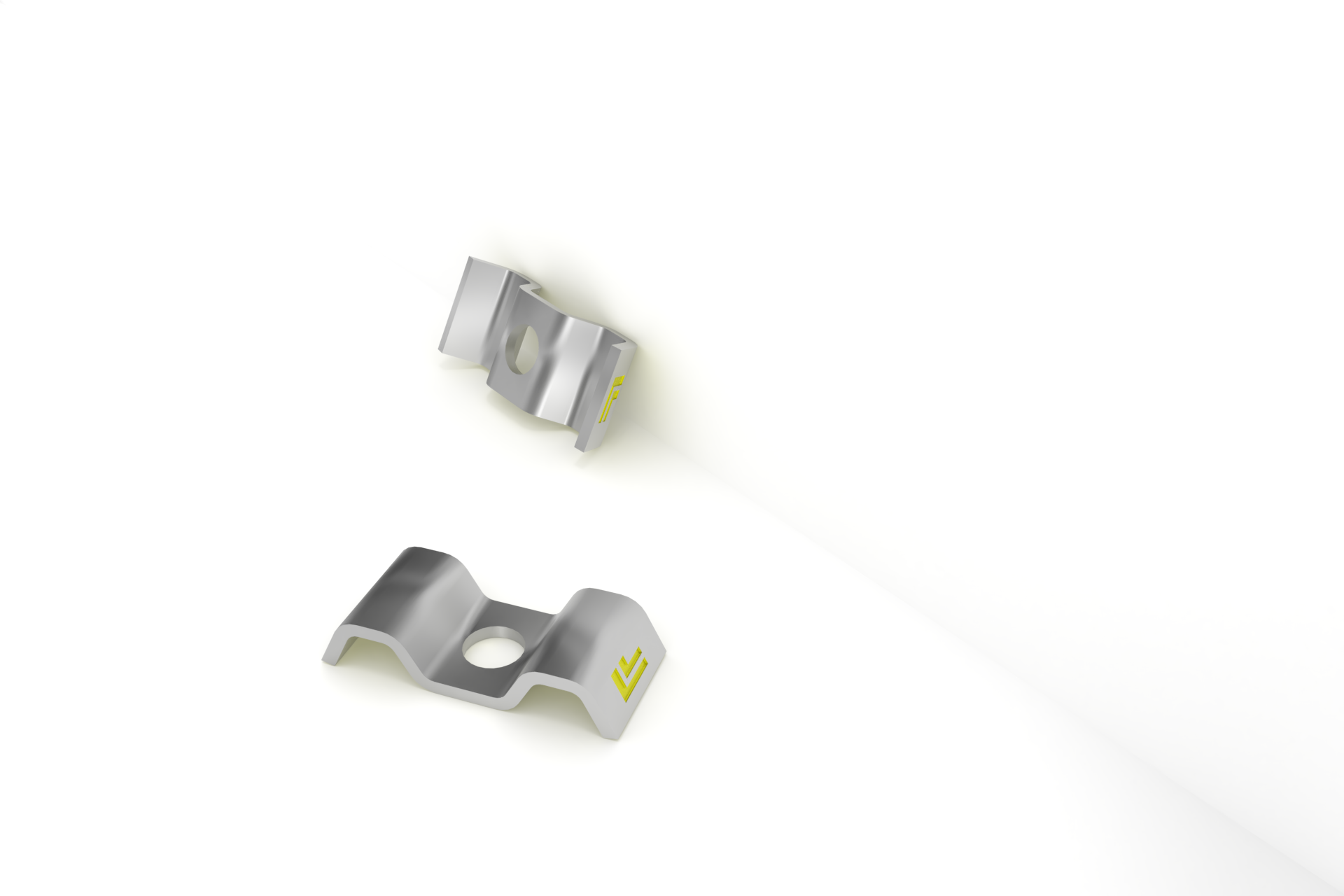

Each shape carries a number — upper part 4, 6, 8, 23, 29 and others. A replacement can therefore be ordered by its type number instead of by description, which is what makes this category useful for maintenance. Most parts are hot-dip galvanized; single types are available in stainless steel 1.4571.
Where to go next
clips · clamps · hooks · fastener sets · guide: grating clips
Frequently asked questions
What does a complete grating fastening consist of?
Four parts: upper clamp, lower clamp, screw and nut. As individual parts they can be combined freely; the same combination is also available pre-assembled as a fastener set.
Is a grating clip the same as an upper clamp?
Yes. Grating clip, retaining clip, grating holder and similar terms all describe the same part that engages the mesh from above. In the ARNELL range it is called the upper clamp, its counterpart from below the lower clamp.
When do individual parts make more sense than a set?
When a special solution is being built, an existing set is being extended, or a single part needs replacing. For a standard installation a pre-assembled set is faster.
Which materials are the individual parts available in?
In galvanized steel and in stainless steel (V2A/V4A). Stainless steel has proven itself for plastic gratings and aggressive environments; hot-dip galvanized steel is the standard outdoors.
